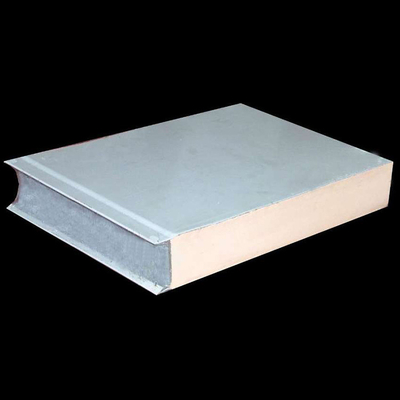

Expanded Polystyrene Sandwich Panels in Poland
Features
1. Good Thermal Insulation, an energy saving material
2. Good Fire Resistance: B1 grade for total panel
3. Special Connection Design: Screw concealed connection
4. Graceful Finish: embossment, small wave, big rib and flat finish
5. Advance Machine: The longest main machine
6. Strict Workshop Management: TMP-5S management system
7. Raw Material: Only quality steel is selected.
8. Strict Quality Control: ISO9001and ISO 14001 certification
9. Wide Usage: Used as roof and wall in workshop and warehouse.
Parameters
| Product name | EPS Sandwich Board | |
| Thickness | upper layer | 0.4mm-0.8mm |
| core material | 50mm,75mm, 100mm, 150mm,200mm | |
| bottom layer | 0.4mm-0.8mm | |
| Effective Width | standard | 950mm, 1150mm |
| other | can be customized | |
| Length | can be customized,less than 12m | |
| Density | ≥12kg/m3 | |
| Weight | up to model | |
| Color | Ral Standard | |
| Temp tolerance | 300℃ | |
| Hydrophobic rate | ≥97.5% | |
| Fire resistance level | B(Self-extinguishing) | |
| Surface profile | Flat,corrugated,big rib, small wave | |
| Compression bearing | ≥ 100Kpa | |
| Material | upper layer | color steel plate or stainless steel sheet |
| inner layer | Expanded Polystyrene | |
| bottom layer | color steel plate or stainless steel sheet | |
| Parts | Eccentric hook used for connection of panel | |
| Film covering for protecting the surface layer | ||
| Connection method | Capped for roof panel,Tongue and groove for wall panel | |
| Heat transfer coefficient | ≤0.041 W/M*K | |
| Characteristics | Light in weight: 12-50kg/m3, easy to install(donnot need crane), reduce construction time,save cost. | |
| Excellent Sound Insulation, heat insulation, waterproof and damp resistant | ||
| Meet specials designs due to it is easy to form and cut | ||
| Durability | ||
| Eco-friendly | ||
| Safe and green,good appearance,without formaldehyde | ||
| Lifespan | can reach 15-20 years | |
| Usage | Widely used for wall and roof of mobile office/building, gymnasium,villa, guard booth, floor heating , steel structure building and packaging industry,Purification workshop ceiling, envelope and purification products; warehouses; refrigerator, air conditioning system; storey adding; large-span roof. | |
